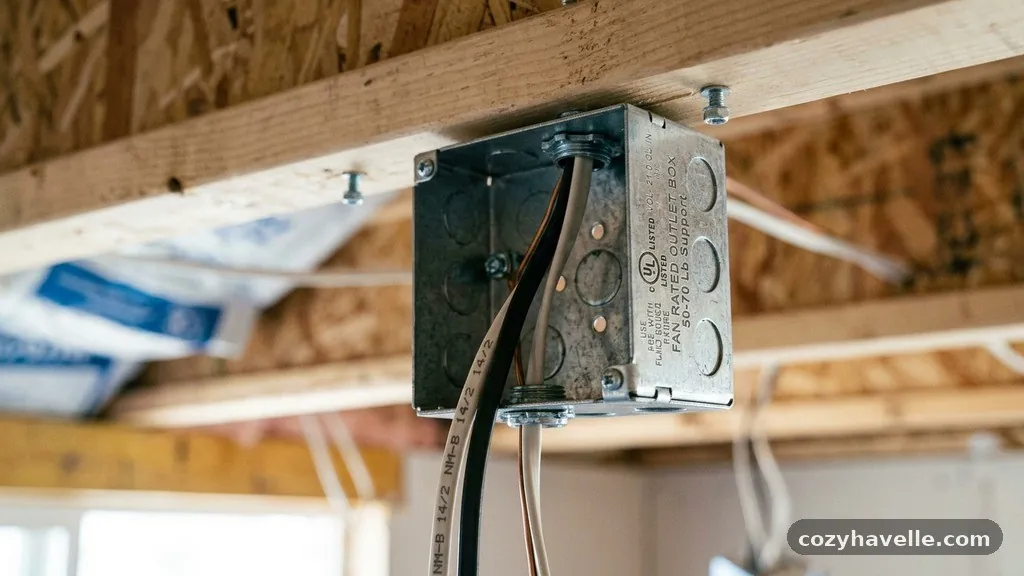

What Is a Fan-Rated Metal Outlet Box (UL Listed 50-70 Lb Support)?
Selecting the right electrical hardware for ceiling fixtures is critical for safety and structural integrity. A fan-rated metal outlet box (UL Listed 50-70 lb support) serves as the fundamental anchor for heavy, oscillating equipment that standard light fixture boxes simply cannot handle. When you install a ceiling fan, the dynamic forces created by the motor and blades require a specialized mounting system designed to prevent vibration, sagging, or catastrophic detachment.
By using a fan-rated metal outlet box (UL Listed 50-70 lb support), you ensure that your cooling system remains securely attached to the building structure while meeting essential electrical safety standards for your home or office space.
Defining the Rating System
When a box earns this specific UL listing, it means it has passed mechanical testing that simulates the constant, uneven pull of a ceiling fan in motion.
Why Standard Boxes Fail
If you attempt to hang a ceiling fan from a standard junction box, you are inviting mechanical failure. Standard boxes are often made of thinner-gauge metal or plastic and are secured to joists with nails or light-duty brackets that lack the structural capacity for heavy loads. Ceiling fans create a “wobble” or vibrational force that works to loosen standard fasteners over time.
Once the screws or nails pull away from the wood structure, the box can tear out of the ceiling entirely. A fan-rated metal outlet box (UL Listed 50-70 lb support) prevents this by using a more substantial mounting bracket that distributes the weight across a larger surface area of the ceiling joists.
Identifying Your Hardware
If you cannot find a clear rating stamped on the interior or exterior of the box, you must assume it is not rated for a fan. Never rely on the appearance of the box alone, as some standard boxes look identical to rated versions but lack the internal bracing required for safety. Always check the manufacturer’s documentation if you are unsure about the specific load capacity.
Structural Requirements and Installation
The installation of a fan-rated metal outlet box (UL Listed 50-70 lb support) usually requires access to the ceiling joists from above or the ability to slide a brace bar through a small hole in the drywall.
Most heavy-duty models use an adjustable steel bar that spans the distance between two ceiling joists, locking into place with tension or machine screws. This creates a bridge that prevents the box from twisting when the fan is set to its highest speed. You should always ensure that the box is perfectly level to prevent the fan from wobbling, which can cause excessive noise and long-term wear on the motor bearings.
Comparing Box Types
While plastic fan-rated boxes exist, many professionals prefer a fan-rated metal outlet box (UL Listed 50-70 lb support) because of its superior durability and fire resistance. The following table highlights the differences between standard residential junction boxes and those specifically designed for heavy-duty ceiling fans.
| Feature | Standard Junction Box | Fan-Rated Metal Box |
|---|---|---|
| Weight Capacity | Typically 15-35 lbs | 50-70 lbs |
| Vibration Resistance | Low | High |
| Material | Often PVC or Thin Steel | Heavy-Gauge Steel |
| Mounting Method | Simple Nail-on | Brace Bar or Deep Joist Screw |
Working with Electrical Code
The National Electrical Code (NEC) mandates that any outlet box used to support a ceiling fan must be specifically listed for that purpose. This is not merely a suggestion; it is a code requirement aimed at preventing injury from falling equipment. By using a fan-rated metal outlet box (UL Listed 50-70 lb support), you stay compliant with local building inspections and insurance requirements. If you modify an existing light fixture box to hold a fan, you are likely violating code and potentially voiding your homeowners’ insurance policy in the event of an accident. You can review the official standards for installation through the National Fire Protection Association to understand the broader context of electrical safety in residential construction.
Managing Vibration and Noise

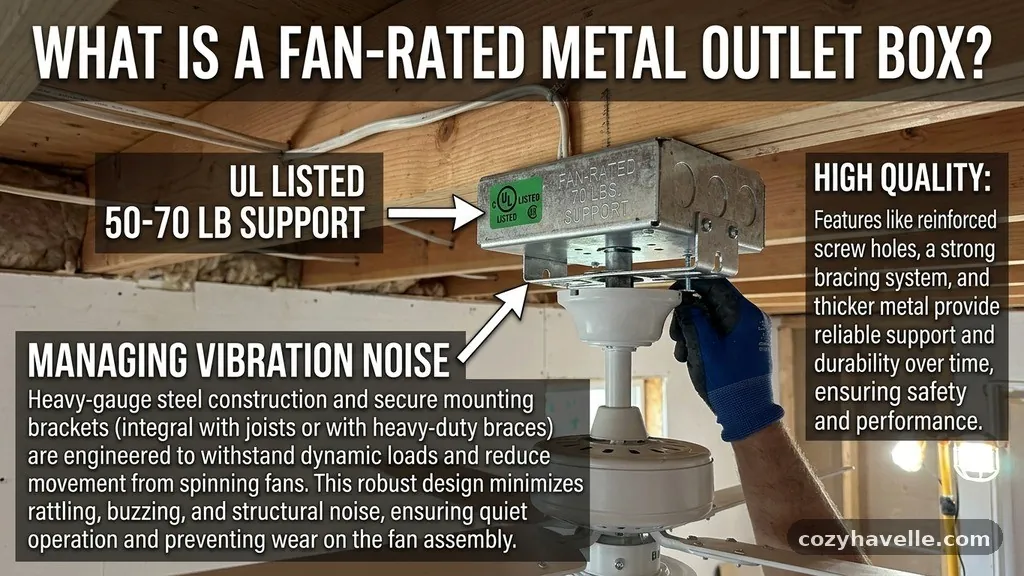

Even with the correct box, improper installation can lead to annoying vibrations that travel through the building frame. A fan-rated metal outlet box (UL Listed 50-70 lb support) is designed to mitigate this by providing a rigid connection point. If you hear a humming or rattling sound, check that the machine screws connecting the fan canopy to the box are tightened to the manufacturer’s specifications. Some installers use rubber gaskets or washers between the canopy and the ceiling to further dampen the transfer of sound. Ensure that no electrical wires are pinched between the box and the fan bracket, as this can exacerbate noise issues.
The Role of the Brace Bar
The secret to a 70-pound rating often lies in the included brace bar system. This bar acts as a tension-based support that pushes against the inner faces of your ceiling joists. When you tighten the box onto this bar, the entire assembly becomes a structural component of the ceiling itself. This is vastly different from a simple box that hangs from a single joist, which can cause the joist to twist under the weight of a heavy, high-end fan. Always ensure the teeth of the brace bar have bitten into the wooden joists to prevent any lateral movement.
Essential Tools for Installation

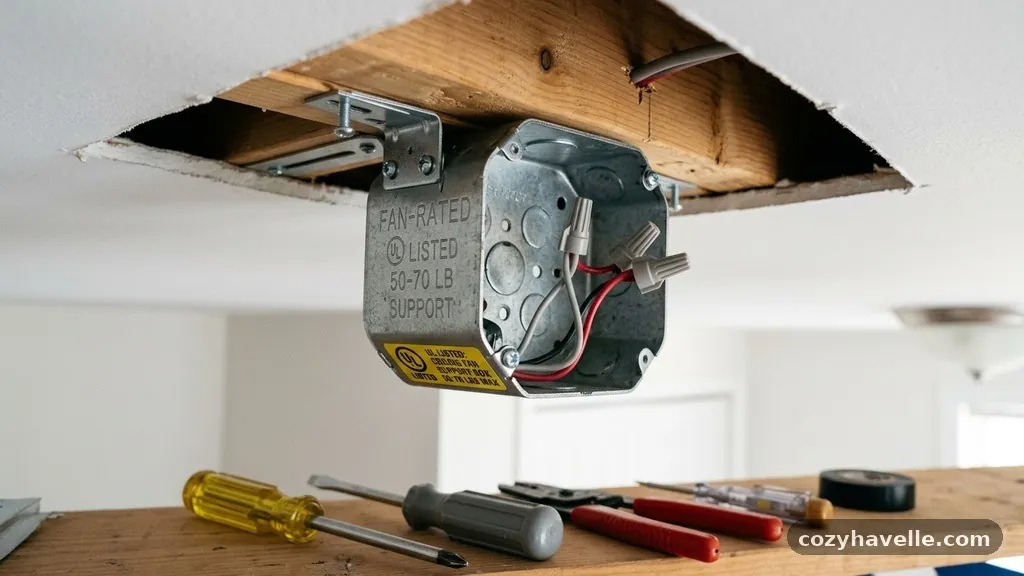

Installing these boxes requires more than just a screwdriver. You will need a stud finder to locate the joists accurately, as the brace bar must reach across the gap between them. A high-quality drill with a pilot bit is necessary to secure the box to the rafters without splitting the wood. If you are working in an existing room, you will need a drywall saw to cut the opening, and potentially a fish tape to pull the electrical cable into the new box position. Having the right tools ensures that the box sits flush against the ceiling surface, which is essential for a clean, professional finish.
Safety Considerations for Older Homes
Retrofitting a fan into an older home presents unique challenges. Many homes built before the 1970s have smaller joist spacing or knob-and-tube wiring that may not be compatible with modern electrical boxes. You must ensure that the box is properly grounded, as modern ceiling fans often have metal housings that could become energized if a short circuit occurs. If your home lacks a grounding wire, you should consult with a licensed electrician before installing any heavy ceiling fixture. A fan-rated metal outlet box (UL Listed 50-70 lb support) provides the necessary grounding lug to keep your setup safe and up to date.
Checklist for a Successful Install
Before you begin your project, verify that you have all the necessary components to complete the job safely. A proper installation involves several distinct steps to ensure the box is secure and the wiring is protected. Keep the following items in mind:
- Verify the ceiling joist spacing matches the length of your brace bar.
- Ensure the box is UL listed specifically for fan support, not just light fixtures.
- Check that the electrical wire gauge is appropriate for the fan’s power requirements.
- Confirm that the box is flush with the ceiling surface to prevent gaps.
- Tighten all mounting hardware to the torque levels specified in the manual.
- Test the fan at multiple speeds to ensure no vibration is present.
Frequently Asked Questions
Can I use a plastic box for my ceiling fan?
While some plastic boxes are rated for ceiling fans, they often have lower weight capacities compared to their metal counterparts. A fan-rated metal outlet box (UL Listed 50-70 lb support) is generally preferred for heavier fans because the material is less prone to warping or cracking under the constant heat and stress of a motor. Always check the specific stamp on the plastic box to ensure it meets the weight requirements for your particular fan model.
How do I know if my box is fan-rated?
You must remove the fan canopy or look inside the box to find the manufacturer’s stamp. Look for text that explicitly states “Fan Rated,” “Acceptable for Fan Support,” or a specific weight rating like “70 lbs.” If you find no such marking, you should replace the box immediately, as you cannot determine its capacity by visual inspection alone.
Does the box rating include the weight of the fan blades?
Yes, the rating provided for a fan-rated metal outlet box (UL Listed 50-70 lb support) includes the total weight of the fixture, including the motor, the downrod, the blades, and the lighting kit. You should weigh your fan or check the manufacturer’s box to ensure the total weight remains below the rated capacity of the junction box. If your fan is near the 70-pound limit, it is best to choose a box designed for that specific load or higher.
Is a fan-rated box required for all ceiling fans?
Yes, the National Electrical Code requires that any box supporting a ceiling fan be listed for that specific use. Even if your fan is lightweight, the dynamic motion of the blades creates forces that a standard light fixture box is not designed to endure. Using a rated box is a critical safety measure to prevent the fan from falling over time.
Can I install a fan-rated box in a finished ceiling?
Yes, you can install these boxes in a finished room using “old work” or “remodel” fan boxes. These kits are designed to be inserted through the hole in the ceiling and expanded to grip the joists from the inside. This allows you to upgrade your room’s cooling system without having to remove large sections of drywall or plaster.
Conclusion
Installing the correct support hardware is the most important step in adding a ceiling fan to your home. By utilizing a fan-rated metal outlet box (UL Listed 50-70 lb support), you provide a foundation that is engineered to handle the unique stresses of rotating blades and motor torque. These boxes offer peace of mind by ensuring that your installation meets national safety codes and structural requirements. Whether you are performing a new construction install or retrofitting an older room, always prioritize the weight rating stamped on the hardware. Taking the time to select and properly install a fan-rated metal outlet box (UL Listed 50-70 lb support) will ensure your cooling system operates quietly, safely, and securely for years to come.
